Filter Cleaning & O-Ring Replacement

Modified on Wed, 6 May at 3:31 PM

Tools Required: Flathead Screwdriver, Safety Gloves, Clean Water

Follow these simple steps to reveal the mesh filter and o-ring inside the spray handle of the Injectosol. If the filter is dirty, simply rinse with clean water before reinstalling.

Watch:

Step-By-Step Instructions:

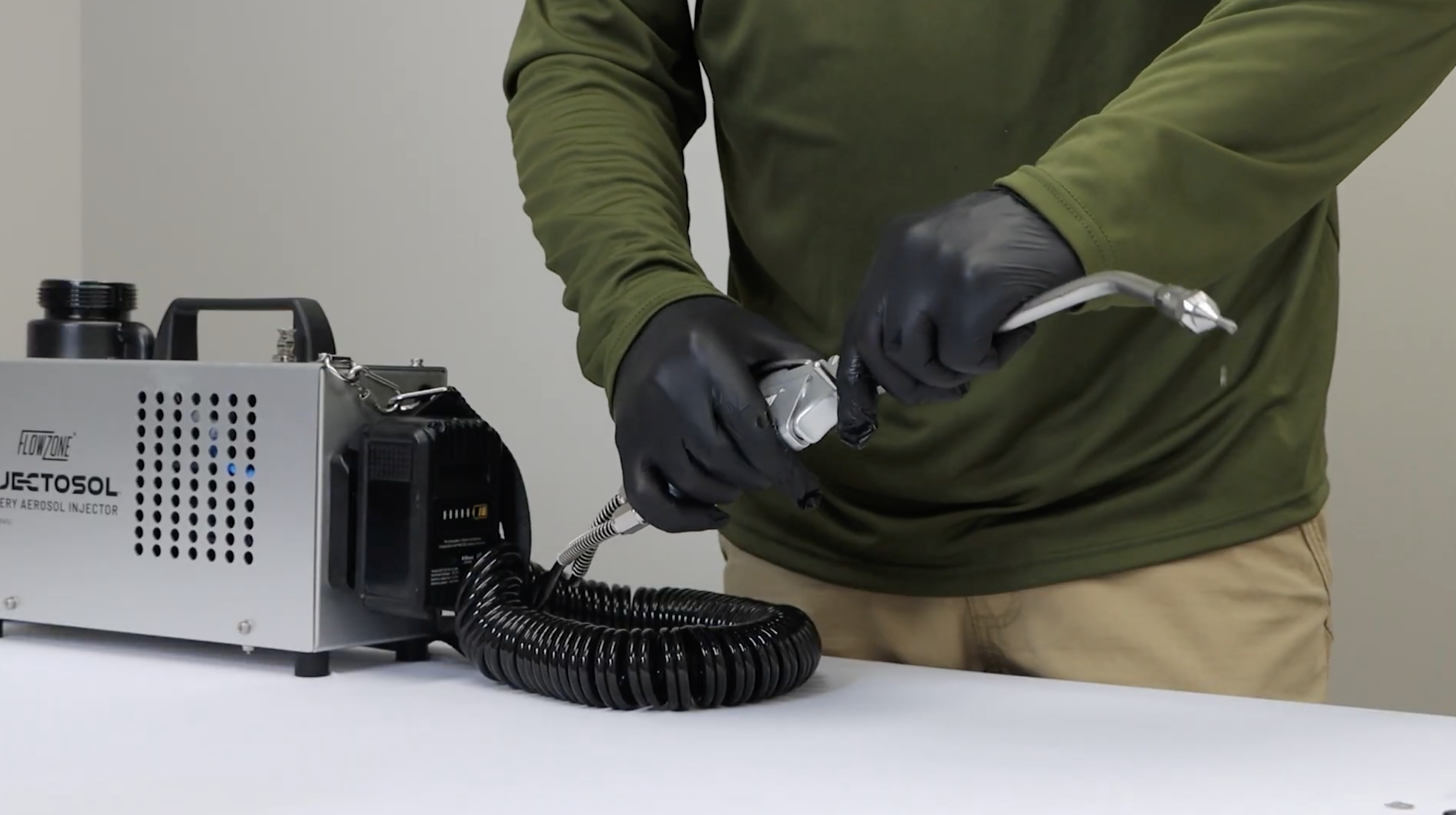

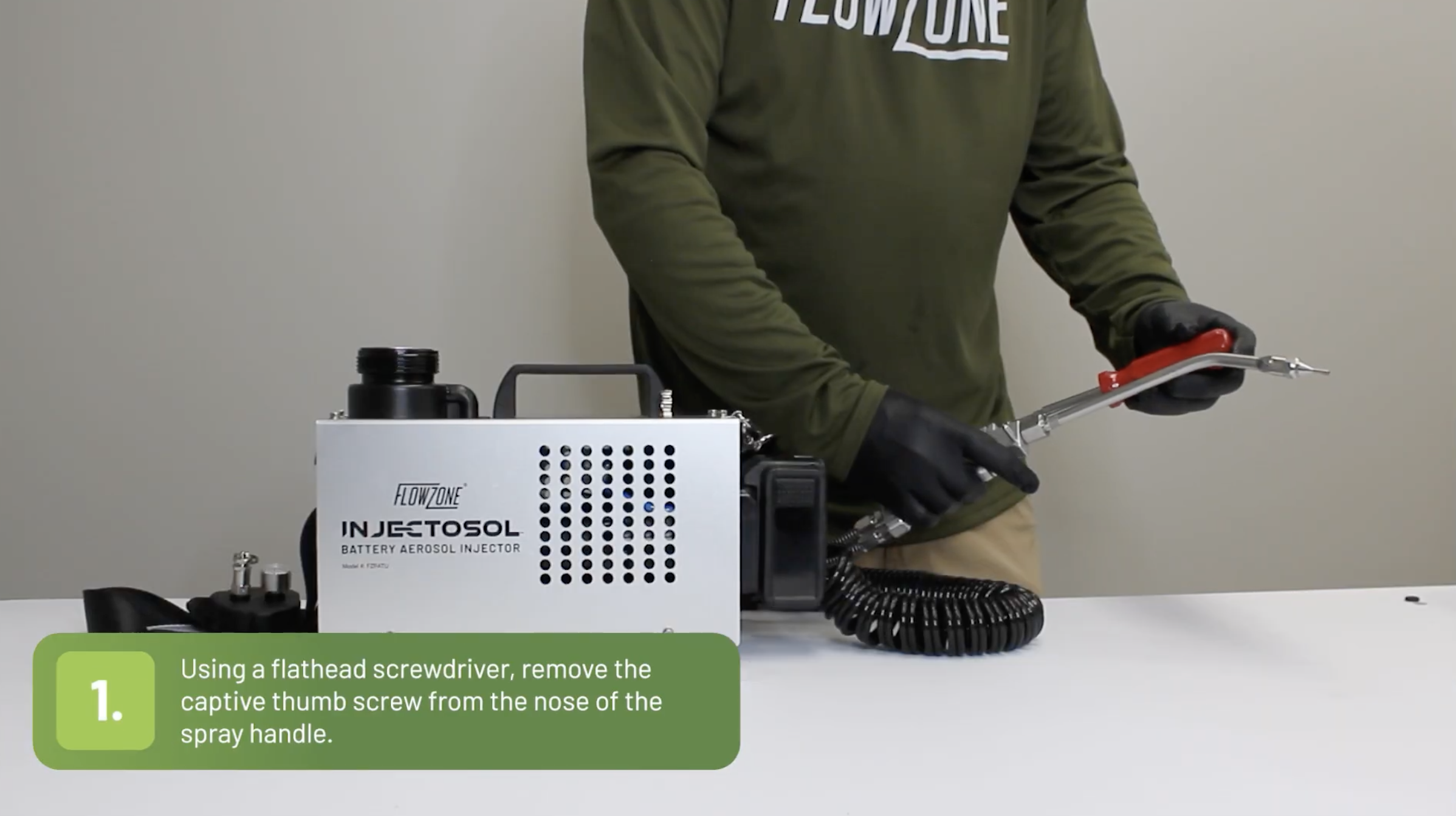

STEP 1: Remove Screw From The Spray Handle

a. Use a flathead screwdriver to remove the captive screw from the nose of the spray handle.

b. Set the the screw to the side to save for later.

Note: The screw must be completely removed in order to complete the rest of the steps.

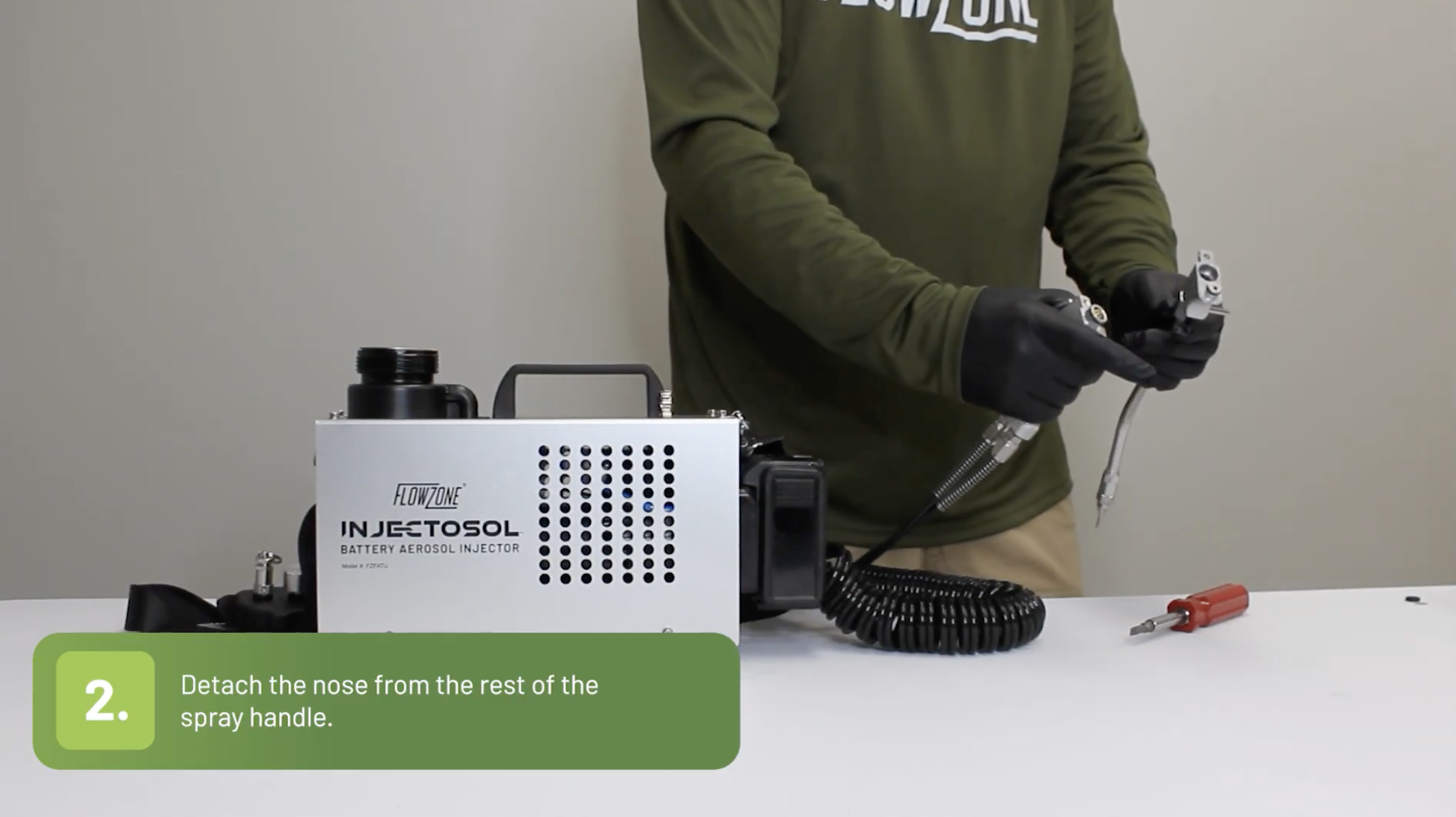

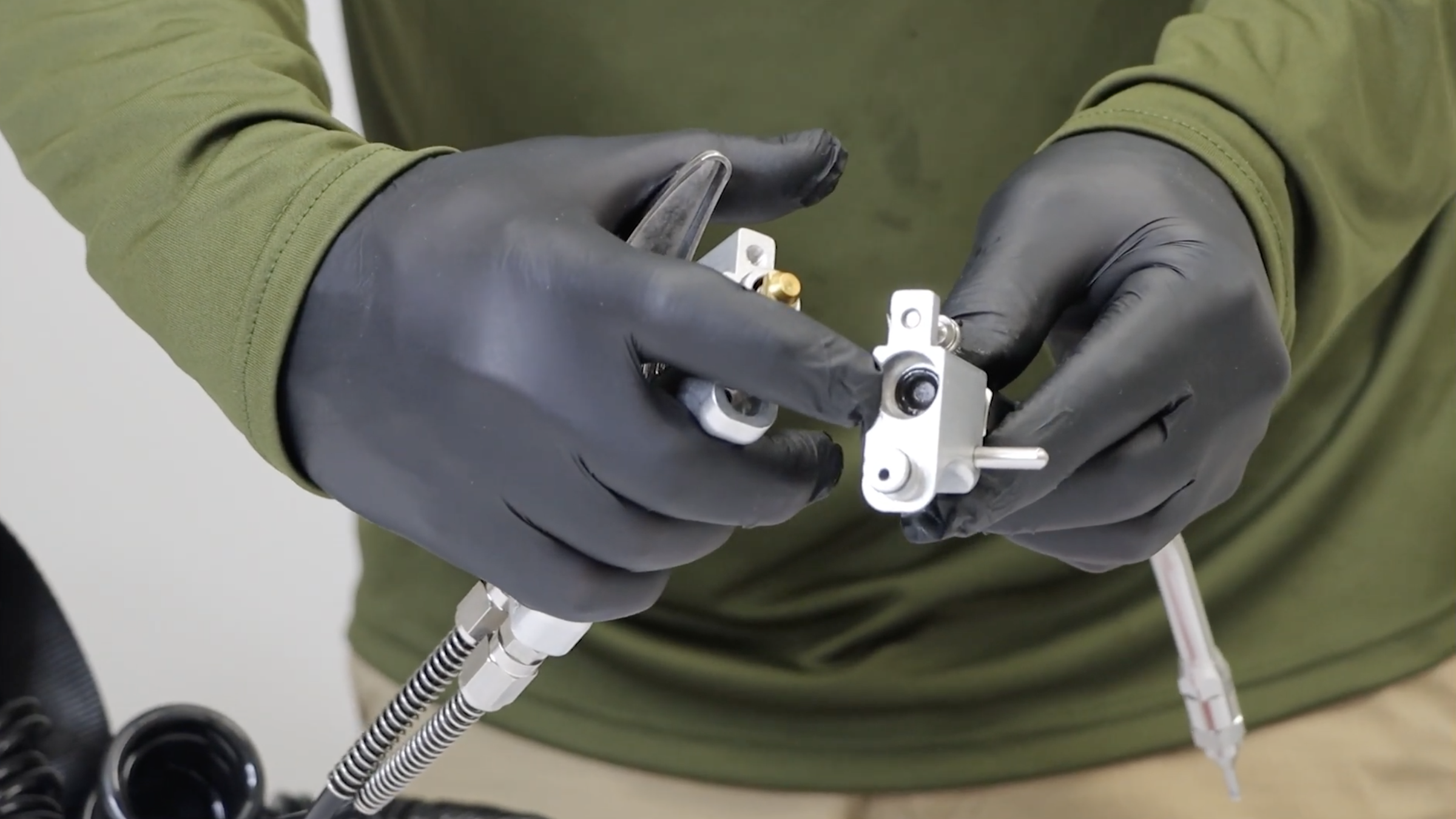

STEP 2 : Detach The Nose

Gently detach the nose from the spray handle on the unit.

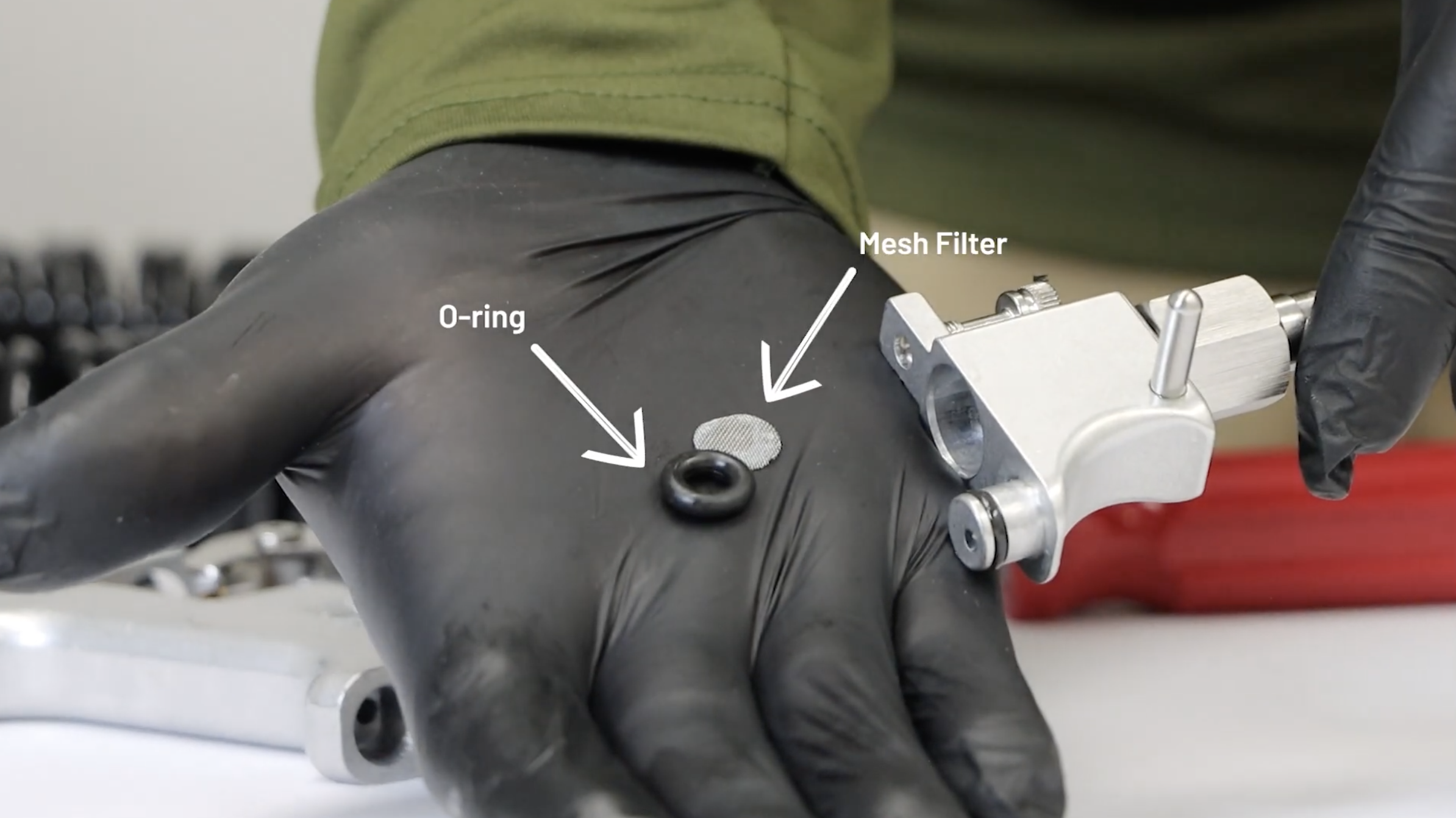

STEP 3: Remove The Filter And The O-Ring

a. Remove the o-ring and filter from the nose.

b. Either clean the screen under clean water or grab the replacement o-ring/ filter.

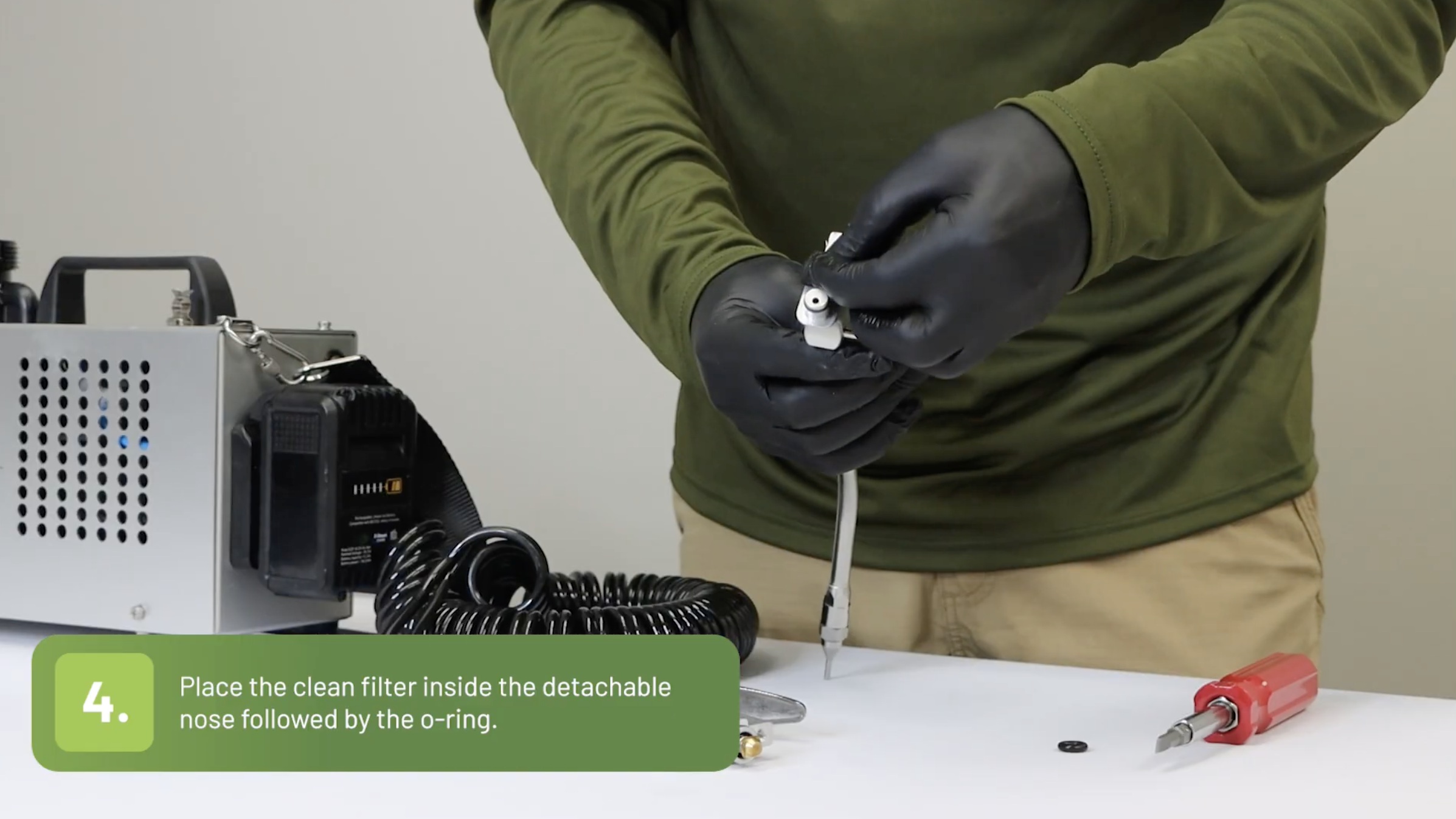

STEP 4: Place Filter And O-Ring In Nose

a. Place the clean or new filter into the detachable nose.

b. On top of the filter you will add the new or original o-ring back into the detachable nose.

STEP 5: Return The Nose Back To Spray Handle

Push the nose back into the spray handle.

Note: Squeezing the trigger will make it easier to attach the handle nose.
